Tension Control Systems
Overview
When the air brake or air clutch is used to control tension, the tension controller output current signals are converted into pneumatic signals by the electro-pneumatic converter.

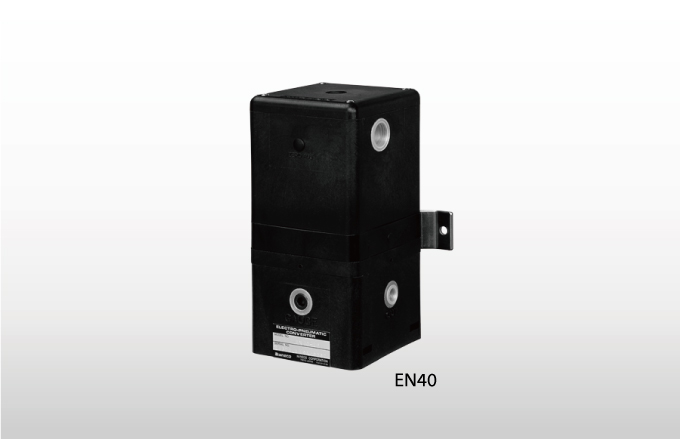

The EN40 electro-pneumatic converter uses the characteristics of moving coils and nozzle flappers to convert electrical input signals into air pressure signals.
The EN40 produces air pressure output signals that have excellent linearity and frequency characteristics. The built-in volume booster means that the EN40 can supply various pneumatic devices with the necessary air volume and pressure. Through remote control, the range of application of the EN40 to industrial pneumatic equipment can be widened.
Feature
- Enables the remote operation of pneumatic equipment
Pneumatic equipment can be operated remotely because their control signals are sent as electrical signals. - Excellent linearity and frequency response
The air pressure is proportional to the electric current, enabling various kinds of industrial pneumatic devices to be operated. - Built-in volume booster
The EN40 has an internal volume booster that has excellent flow characteristics, enabling the direct control of ordinary industrial pneumatic devices. - Compact and can be fitted with a manifold
The EN40 is small and is designed to take up very little space. A manifold can be fitted. - Even if the source pressure changes, the output is hardly affected at all
In the standard model, if the source pressure changes by 0.1 MPa, the output air pressure variation will be within 3%. This variation is even less with the pilot stabilizer model. - A high-quality plastic resin is used for the case and construction
A plastic resin with excellent strength and environmental durability (resistant to chemicals and weather) is used.
Specifications
MODEL | EN40-1A-V | EN40-1B-V | EN40-2B-V | EN40-5B-V | EN40-6C-V | EN40-1AS-V | EN40-1BS-V | EN40-2BS-V | EN40-5BS-V | EN40-6CS-V | |
---|---|---|---|---|---|---|---|---|---|---|---|
Input current | mA DC | 4 to 20 | 4 to 20 | 10 to 50 | 0 to 16 | 0 to 20 | 4 to 20 | 4 to 20 | 10 to 50 | 0 to 16 | 0 to 20 |
Output pressure † | MPa | 0 to 0.4 | 0 to 0.6 | 0 to 0.6 | 0 to 0.6 | 0 to 0.5 | 0 to 0.4 | 0 to 0.6 | 0 to 0.6 | 0 to 0.6 | 0 to 0.5 |
Supply air pressure | MPa | 0.5 | 0.7 | 0.7 | 0.7 | 0.6 | 0.5 | 0.7 | 0.7 | 0.7 | 0.6 |
Air consumption * | Nℓ/min | 9 | 12 | 12 | 12 | 10.5 | 9 | 12 | 12 | 12 | 10.5 |
Max. flow rate | Nℓ/min | 1000 | 1400 | 1400 | 1400 | 1200 | 1000 | 1400 | 1400 | 1400 | 1200 |
Hysteresis | MPa | 0.005 (1.25%) |
0.007 (1.2%) |
0.007 (1.2%) |
0.007 (1.2%) |
0.006 (1.2%) |
0.005 (1.25%) |
0.007 (1.2%) |
0.007 (1.2%) |
0.007 (1.2%) |
0.006 (1.2%) |
Frequency response | -3dB/10Hz, -45゚/5Hz | -3dB/10Hz、-45°/5Hz | |||||||||
Linearity : ±1% Load resistance (input impedance) : 450Ωmax. |
Material : High-density plastic foam(PBT) Appearance : Black Installation : Wall, floor or manifold mounting Ambient temperature : 0 to +60 Mass : 2.5kg |
Body, case and cover material: conductive plastic resin (PBT, VC210) Approval number: No. C16096 Gas or steam explosion class and ignition group: II BT4 Appearance : Black Installation : Wall, floor or manifold mounting Ambient temperature : 0 to +60 Mass : 2.5kg |
Notes.
1.Use a constant-current power supply for the input.
2.An asterisk (*) mark indicates values at the maximum output pressure.
3. †: At output pressures of 0.01 MPa or lower, there is no linearity with respect to the input.
