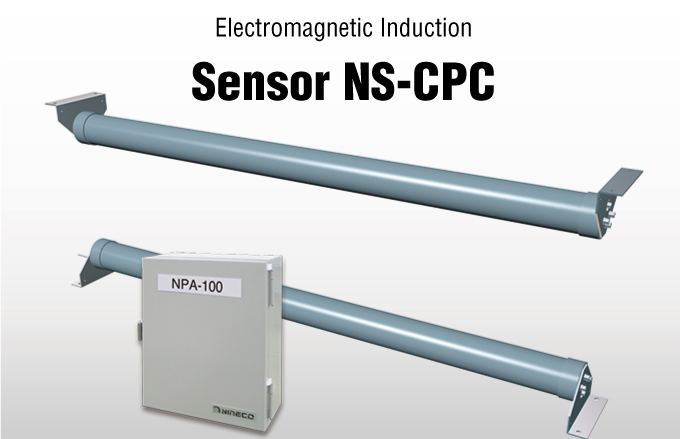

Electromagnetic Guidance NS-CPC Sensor
Overview
A maintenance-free sensor which can be used long term in harsh environments.
The NS-CPC sensor continuously detects the strip (steel sheet and metal plate) edge positions using electromagnetic induction and outputs any discrepancy in the strip center position as a deviation signal. Because it uses electromagnetic induction, it is not affected by dust, steam, oil or other materials and its simple and robust structure allows it to be used reliably over long periods.
Feature
- Electromagnetic Induction: the sensor does not use light.
- Not affected by adhesion of dust, steam, oil or other materials.
- Simple design and durable structure.
- There are no consumable parts.
- No changes in detection performance with time.
- Truly maintenance free.

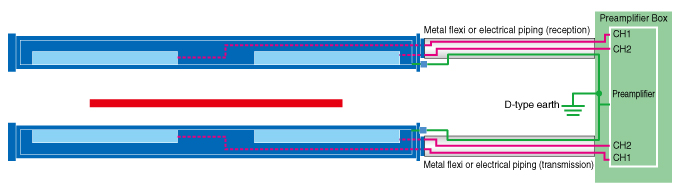

Signal Circuit and Cable Specifications
The NS-CPC sensor consists of a preamplifier and sensor (including 2 transmission coils, 2 reception coils and a specialized cable). The sensor straddles and is positioned facing the strip. The high- frequency magnetic field emitted from the transmission coils generates induced voltage in the receiving coils. This induced voltage changes with the strip position so the variances in the voltage at the receiving coils can be used to calculate the strip center position.
Specifications
Sensor
| Sensor Type Inspection plate width |
NS-130 (Old Type NSD-100) 500 to1300mm NS-190 (Old Type NSD-300) 600 to1900mm NS-220 (under development) 500 to2200mm (planned) |
|---|---|
| Cable length | 25mMAX (Can be cut to optimal length) |
| Transmission reception interval | 400mm(fixed) |
| Range of detection | ±100mm |
| Installation air temperature | 0 to 60℃ |
| Case material | Hard vinyl chloride (PVC) |
Preamplifier
| Preamplifier type | NSA-100A ( NS-130 ) NSA-100B ( NS-190 ) NSA-100C ( NS-220 ) |
|---|---|
| Output signal | Strip variance ±5VDC/±100mm |
| Installation method | Attachment |
| Installation air temperature | 0 to 40℃ |
| Installation air temperature | 0 to 60℃ |
| Mass | 7.5kg |
| Power supply | AC100V±10％ 50/60Hz 100VA |
| Earthing | Less than 10Ω |
